基于中智技術對于客戶需求的準確需求，秉承對于高性能、高可靠性的一貫追求，MZ系列變頻器將以超高的性價比和強大的功能，為您帶來煥然一新的用戶體驗。
|
類型 |
系列 |
性能 |
|
高性能矢量變頻器 |
MZ510
MZ520 |

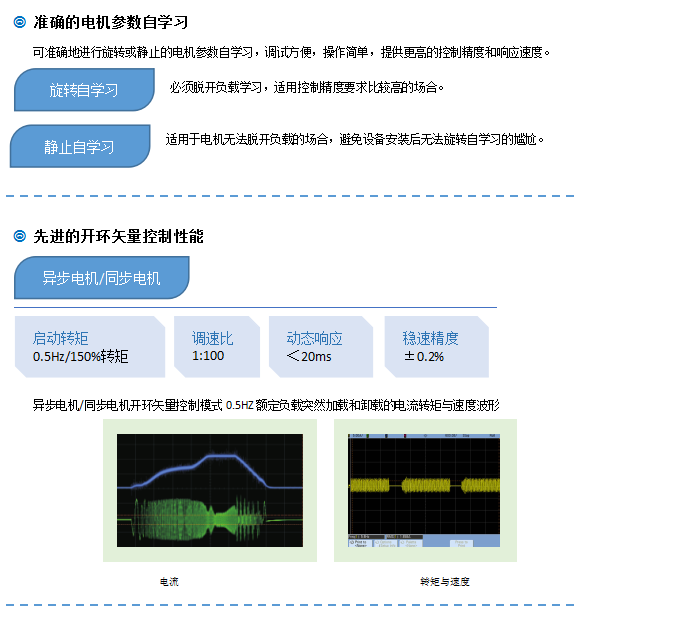

I、優化的結構設計，高性能，高可靠性； 2、滿足CE認證； 3、完善的制動回路方案； 4、內置直流電抗器； 5、嚴格的設計規范保障了產品的可靠性； 6、矢量控制下的高性能； 7、自整定電機參數完善； 8、實現VF完全分離和半分離下運行，滿足變頻變壓的電源輸出要求； 9、通過選配可編程卡，實現客戶端的二次開發，速度更快、效率更高、配置簡單易用； 10、整機保護更完善； 11、EMC設計規格提升； 12、通訊接口應用更靈活； 13、內置自適應PID功能模塊。 |

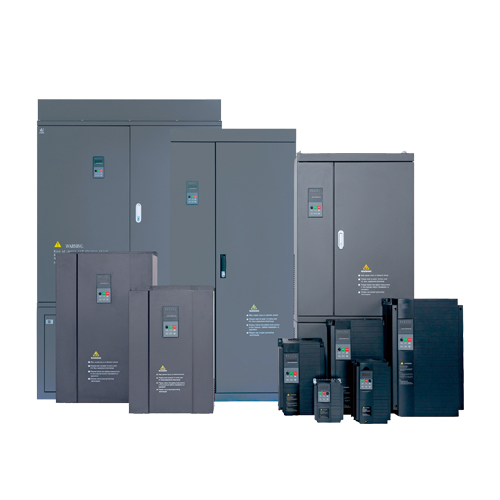

MZ510系列高性能矢量變頻器是一款通用高性能電流矢量變頻器，主要用于控制和調節三相交流異步電機的速度和轉矩，支持多種 PG卡等，功能強大?？捎糜诩徔?、造紙、拉絲、機床、包裝、食品、風機、水泵及各種自動化生產設備的驅動。
機床、拉絲、造紙、紡織、染整、羅茨風機、起重提升、塑機、包裝、水泵、暖通、石油、化工、醫療、食品機械、各種自動化生產設備等。
|
電源容量KVA |
輸入電流A |
輸出電流A |
適配電機KW |
外形尺寸 |
|
|
單相電源：220V，50/60Hz |
|||||
|
MZ510-0004G-S2 |
1.0 |
5.4 |
2.3 |
0.4 |
D1 |
|
MZ510-0007G-S2 |
1.5 |
8.2 |
4.0 |
0.75 |
|
|
MZ 510-0015G-S2 |
3.0 |
14.0 |
7.0 |
1.5 |
D2 |
|
MZ 510-0022G-S2 |
4.0 |
23.0 |
9.6 |
2.2 |
|
|
三相電源：220V，50/60Hz |
|||||
|
MZ 510-0037G-T2 |
8.9 |
14.6 |
13.0 |
3.7 |
D3 |
|
MZ 510-0055G-T2 |
17.0 |
26.0 |
25.0 |
5.5 |
D4 |
|
MZ 510-0075G-T2 |
21.0 |
35.0 |
32.0 |
7.5 |
|
|
MZ 510-0110G-T2 |
30.0 |
46.5 |
45.0 |
11.0 |
D5 |
|
MZ510-0150G-T2 |
40.0 |
62.0 |
60.0 |
15.0 |
|
|
MZ510-0185G-T2 |
57.0 |
76.0 |
75.0 |
18.5 |
D6 |
|
MZ510-0220G-T2 |
69.0 |
92.0 |
91.0 |
22.0 |
|
|
MZ510-0300G-T2 |
85.0 |
113.0 |
112.0 |
30.0 |
D7 |
|
MZ510-0370G-T2 |
114.0 |
157.0 |
150.0 |
37.0 |
|
|
MZ510-0450G-T2 |
134.0 |
180.0 |
176.0 |
45.0 |
D8 |
|
MZ510-0550G-T2 |
160.0 |
214.0 |
210.0 |
55.0 |
|
|
MZ510-0750G-T2 |
231.0 |
307.0 |
304.0 |
75.0 |
D9 |
|
三相電源：380V/480V，50/60Hz |
|||||
|
MZ510-0007G-T4/T5 |
1.5 |
3.4 |
2.1 |
0.75 |
D2 |
|
MZ510-0015G-T4/T5 |
3.0 |
5.0 |
3.8 |
1.5 |
|
|
MZ510-0022G-T4/T5 |
4.0 |
5.8 |
5.1 |
2.2 |
|
|
MZ510-0037G/0055P-T4/T5 |
5.9 |
10.5 |
9.0 |
3.7 |
D3 |
|
MZ510-0055G/0075P-T4/T5 |
8.9 |
14.6 |
13.0 |
5.5 |
|
|
MZ510-0075G/0110P-T4/T5 |
11.0 |
20.5 |
17.0 |
7.5 |
|
|
MZ510-0110G/0150P-T4/T5 |
17.0 |
26.0 |
25.0 |
11.0 |
D4 |
|
MZ510-0150G/0185P-T4/T5 |
21.0 |
35.0 |
32.0 |
15.0 |
|
|
MZ510-0185G/0220P-T4/T5 |
24.0 |
38.5 |
37.0 |
18.5 |
|
|
MZ510-0220G/0300P-T4/T5 |
30.0 |
46.5 |
45.0 |
22.0 |
D5 |
|
MZ510-0300G/0370P-T4/T5 |
40.0 |
62.0 |
60.0 |
30.0 |
|
|
MZ510-0370G/0450P-T4/T5 |
57.0 |
76.0 |
75.0 |
37.0 |
D6 |
|
MZ510-0450G/0550P-T4/T5 |
69.0 |
92.0 |
91.0 |
45.0 |
|
|
MZ510-0550G/0750P-T4/T5 |
85.0 |
113.0 |
112.0 |
55.0 |
D7 |
|
MZ510-0750G/0900P-T4/T5 |
114.0 |
157.0 |
150.0 |
75.0 |
|
|
MZ510-0900G/1100P-T4/T5 |
134.0 |
180.0 |
176.0 |
90.0 |
D8 |
|
MZ510-1100G/1320P-T4/T5 |
160.0 |
214.0 |
210.0 |
110.0 |
|
|
MZ510-1320G/1600P-T4/T5 |
192.0 |
256.0 |
253.0 |
132.0 |
D9 D10 |
|
MZ510-1600G/2000P-T4/T5 |
231.0 |
307.0 |
304.0 |
160.0 |
|
|
MZ510-2000G/2200P-T4/T5 |
250.0 |
385.0 |
377.0 |
200.0 |
|
|
MZ510-2200G/2500P-T4/T5 |
280.0 |
430.0 |
426.0 |
220.0 |
D11 |
|
MZ510-2500G/2800P-T4/T5 |
355.0 |
468.0 |
465.0 |
250.0 |
|
|
MZ510-2800G/3150P-T4/T5 |
396.0 |
525.0 |
520.0 |
280.0 |
|
|
MZ510-3150G/3550P-T4/T5 |
445.0 |
590.0 |
585.0 |
315.0 |
|
|
MZ510-3550G-T4/T5 |
500.0 |
665.0 |
650.0 |
350.0 |
|
|
MZ510-4000G-T4/T5 |
565.0 |
785.0 |
725.0 |
400.0 |
D12 |
|
MZ510-5000G-T4/T5 |
700.0 |
890.0 |
870.0 |
500.0 |
|
|
MZ510-5600G-T4/T5 |
783.0 |
980.0 |
950.0 |
560.0 |
|
|
MZ510-6300G-T4/T5 |
882.0 |
1180.0 |
1100.0 |
630.0 |
|
|
三相電源：690V，50/60Hz |
|||||
|
MZ510-0550G-T6 |
84.0 |
70.0 |
65.0 |
55.0 |
D7 |
|
MZ510-0750G-T6 |
107.0 |
90.0 |
86.0 |
75.0 |
|
|
MZ510-0900G-T6 |
125.0 |
105.0 |
100.0 |
90.0 |
D8 |
|
MZ510-1100G-T6 |
155.0 |
130.0 |
120.0 |
110.0 |
|
|
MZ510-1320G-T6 |
192.0 |
170.0 |
150.0 |
132.0 |
|
|
MZ510-1600G-T6 |
231.0 |
200.0 |
175.0 |
160.0 |
D10 |
|
MZ510-2000G-T6 |
250.0 |
235.0 |
215.0 |
200.0 |
|
|
MZ510-2200G-T6 |
280.0 |
247.0 |
245.0 |
220.0 |
|
|
MZ510-2500G-T6 |
355.0 |
265.0 |
260.0 |
250.0 |
D11 |
|
MZ510-2800G-T6 |
396.0 |
305.0 |
299.0 |
280.0 |
|
|
MZ510-3150G-T6 |
445.0 |
350.0 |
330.0 |
315.0 |
|
|
MZ510-3550G-T6 |
500.0 |
382.0 |
374.0 |
355.0 |
|
|
MZ510-4000G-T6 |
565.0 |
435.0 |
410.0 |
400.0 |
請咨詢生產廠家 |
|
三相電源：1140V，50/60Hz |
|||||
|
MZ510-0370G-T11 |
57.0 |
25.7 |
25.0 |
37.0 |
請咨詢生產廠家 |
|
MZ510-0450G-T11 |
69.0 |
30.9 |
30.0 |
45.0 |
請咨詢生產廠家 |
|
MZ510-0550G-T11 |
85.0 |
38.2 |
37.0 |
55.0 |
請咨詢生產廠家 |
|
MZ510-0750G-T11 |
114.0 |
51.5 |
50.0 |
75.0 |
請咨詢生產廠家 |
|
MZ510-0900G-T11 |
134.0 |
60.8 |
59.0 |
90.0 |
請咨詢生產廠家 |
|
MZ510-1100G-T11 |
160.0 |
72.1 |
70.0 |
110.0 |
請咨詢生產廠家 |
|
MZ510-1320G-T11 |
192.0 |
93.8 |
91.0 |
132.0 |
請咨詢生產廠家 |
|
MZ510-1800G-T11 |
240.0 |
120.6 |
117.0 |
180.0 |
請咨詢生產廠家 |
|
MZ510-2000G-T11 |
250.0 |
134.0 |
130.0 |
200.0 |
請咨詢生產廠家 |
|
MZ510-2200G-T11 |
280.0 |
152.5 |
148.0 |
220.0 |
請咨詢生產廠家 |
|
MZ510-2500G-T11 |
355.0 |
161.7 |
157.0 |
250.0 |
請咨詢生產廠家 |
|
MZ510-2800G-T11 |
396.0 |
186.5 |
181.0 |
280.0 |
請咨詢生產廠家 |
|
MZ510-3150G-T11 |
445.0 |
206.0 |
200.0 |
315.0 |
請咨詢生產廠家 |
|
MZ510-3550G-T11 |
500.0 |
232.8 |
226.0 |
355.0 |
請咨詢生產廠家 |
|
MZ510-4000G-T11 |
565.0 |
255.5 |
248.0 |
400.0 |
請咨詢生產廠家 |
|
MZ510-4500G-T11 |
630.0 |
289.5 |
281.0 |
450.0 |
請咨詢生產廠家 |
|
MZ510-5000G-T11 |
700.0 |
343.0 |
333.0 |
500.0 |
請咨詢生產廠家 |
|
MZ510-5600G-T11 |
784.0 |
358.5 |
348.0 |
560.0 |
請咨詢生產廠家 |
|
MZ510-6300G-T11 |
882.0 |
412.0 |
400.0 |
630.0 |
請咨詢生產廠家 |
